| 链轮对夹式刀型闸阀 |
 |
| 名称： 链轮对夹式刀型闸阀 |
| 型号： PZL73H/X/F | |
| 详细信息： |

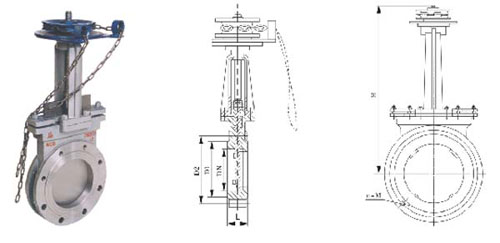

主要外形及连接尺寸(mm)
| MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
| 0.6 |
50 |
50 |
90 |
110 |
325 |
4-M12 |
1.0 |
50 |
50 |
100 |
125 |
325 |
4-M16 |
| 65 |
50 |
110 |
130 |
340 |
4-M12 |
65 |
50 |
120 |
145 |
340 |
4-M16 |
| 80 |
50 |
125 |
150 |
355 |
4-M16 |
80 |
50 |
135 |
160 |
355 |
4-M16 |
| 100 |
50 |
145 |
170 |
405 |
8-M16 |
100 |
50 |
155 |
180 |
405 |
8-M16 |
| 125 |
50 |
175 |
200 |
440 |
8-M16 |
125 |
50 |
185 |
210 |
440 |
8-M16 |
| 150 |
60 |
200 |
225 |
520 |
8-M16 |
150 |
60 |
210 |
240 |
520 |
8-M20 |
| 200 |
60 |
255 |
280 |
580 |
8-M16 |
200 |
60 |
265 |
295 |
580 |
8-M20 |
| 250 |
70 |
310 |
335 |
670 |
12-M16 |
250 |
70 |
320 |
350 |
670 |
12-M20 |
| 300 |
80 |
362 |
395 |
820 |
12-M20 |
300 |
80 |
368 |
400 |
820 |
12-M20 |
| 350 |
90 |
412 |
445 |
925 |
12-M20 |
350 |
90 |
428 |
460 |
925 |
16-M20 |
| 400 |
100 |
462 |
495 |
1030 |
16-M20 |
400 |
100 |
482 |
515 |
1030 |
16-M22 |
| 450 |
120 |
518 |
550 |
1180 |
16-M20 |
450 |
120 |
532 |
565 |
1180 |
20-M22 |
| 500 |
120 |
568 |
600 |
1290 |
16-M20 |
500 |
120 |
585 |
620 |
1290 |
20-M22 |
|
|
|
|
|
|
